Wednesday, August 5, 2015

LSS Arch 1.2.3

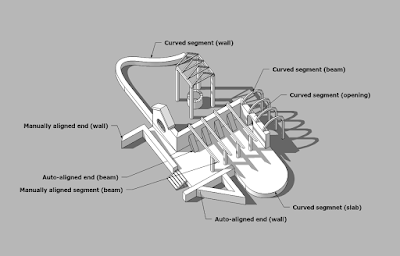

This minor update contains a couple of new interesting features and some important fixes. Chart above shows key new features.

New Features

New features introduced in version 1.2.3 are:

  • ability to adjust alignment of end faces of 'linear' object types (wall, beam)
  • ability to make segments of object's contour curved
Positive side effect of the first feature is that new version provides clearer result of a spiral beam generation. Here is a comparison of previous and new version:

Version 1.2.0(1.2.2)

Version 1.2.0(1.2.3)

Ability to make curved segments allows to model objects of a complex shape much faster in contrast to tracing a curved contour vertex-by-vertex. All contours may have curved segments including beam's profile contour or clipping contours of mesh or grid objects.
Current version provides two types of curves:

  • arc curve
  • Bézier curve


First of all a bug reported after version 1.2 publication, which prevented work of a beam tool when a custom profile is selected, now fixed.

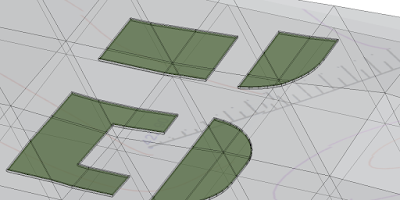

Another important fix provides cleaner geometry of mesh object, when numerous clipping contours are enabled. And beam sub-objects which are attached to such mesh object now also have accurate geometry.

Version 1.2.0 (1.2.2)

Version 1.2.3

Detailed list of all changes can be found within "What's New" chapter of extension's help system.
